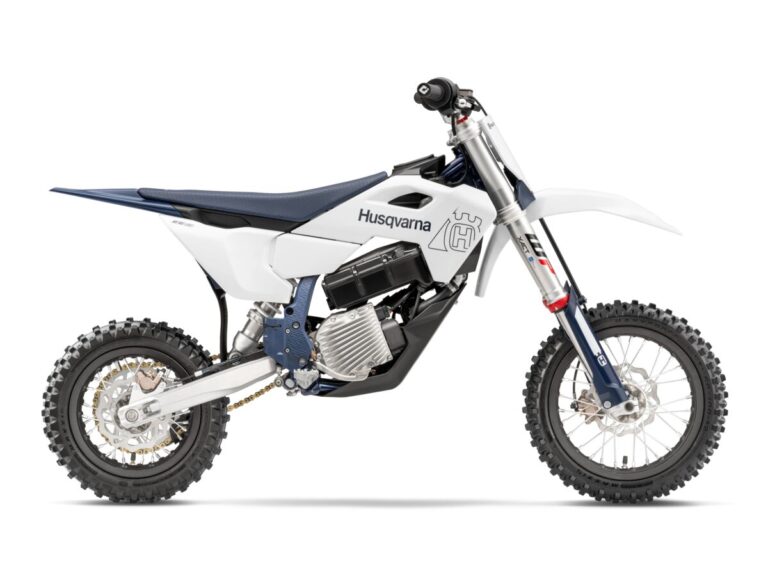

EE 5 2020
TECHNICAL SPECS
ENGINE
- Electric motor48 V: BLDC motor with outer rotor
- Rated output: 2 kW / 3,200 rpm
- Max. power: 5 kW / 3,900 rpm
- Torque: 13.8 Nm
- Cooling: Air cooled
- Traction battery: Lithium-ion
- Energy content: 0.907 kWh
- Battery capacity: 21 Ah
- Charging power: 900 W
- Charging time 80 %: 45
- Charging time 100 %: 70
- Charging input: Quick charging 5 A @ 230 V (AC)
CHASSIS
- Frame design: Central-tube frame with double-cradle
- Front suspension: XACT 35 WP Upside-Down fork, Ø 35 mm
- Rear suspension: XACT WP mono shock
- Suspension travel (front): 205 mm
- Suspension travel (rear): 185 mm
- Front brake: Disc brake
- Rear brake: Disc brake
- Front brake disc diameter: 160 mm
- Rear brake disc diameter: 160 mm
- Chain: 1/2 x 3/16″
- Steering head angle: 66 °
- Ground clearance: 252 mm
- Seat height: 684 mm
