CURRENT IN-STORE NEW BIKE DEALS!
HUSQVARNA TC-50-MINI

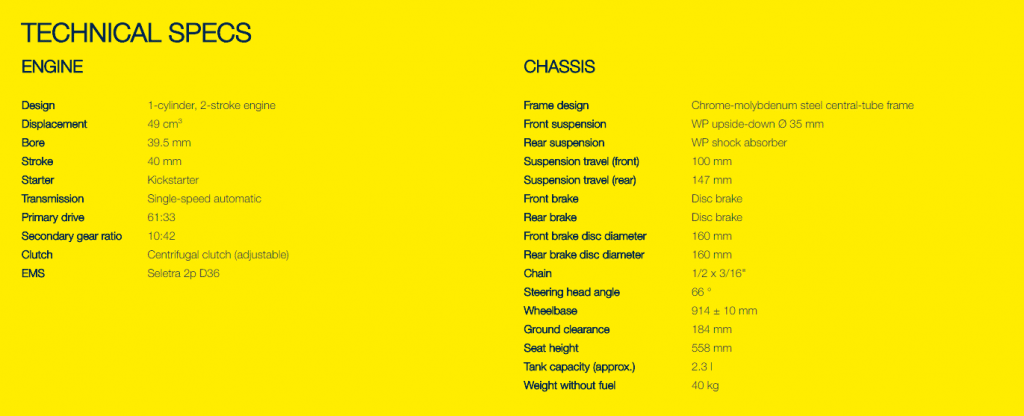

TECHNICAL SPECS
ENGINE
- Design: 1-cylinder, 2-stroke engine
- Displacement: 49 cm³
- Bore: 39.5 mm
- Stroke: 40 mm
- Starter: Kickstarter
- Transmission: Single-speed automatic
- Primary drive: 61:33
- Secondary gear ratio: 10:42
- Clutch: Centrifugal clutch (adjustable)
- EMS: Seletra 2p D36
CHASSIS
- Frame design: Chrome-molybdenum steel central-tube frame
- Front suspension: WP upside-down ⌀ 35 mm
- Rear suspension: WP shock absorber
- Suspension travel (front): 100 mm
- Suspension travel (rear): 147 mm
- Front brake: Disc brake
- Rear brake: Disc brake
- Front brake disc diameter: 160 mm
- Rear brake disc diameter: 160 mm
- Chain: 1/2 x 3/16*
- Steering head angle: 66 °
- Wheelbase: 914 ± 10 mm
- Ground clearance: 184 mm
- Seat height: 558 mm
- Tank capacity (approx.): 2.3 l
- Weight without fuel: 40 kg
